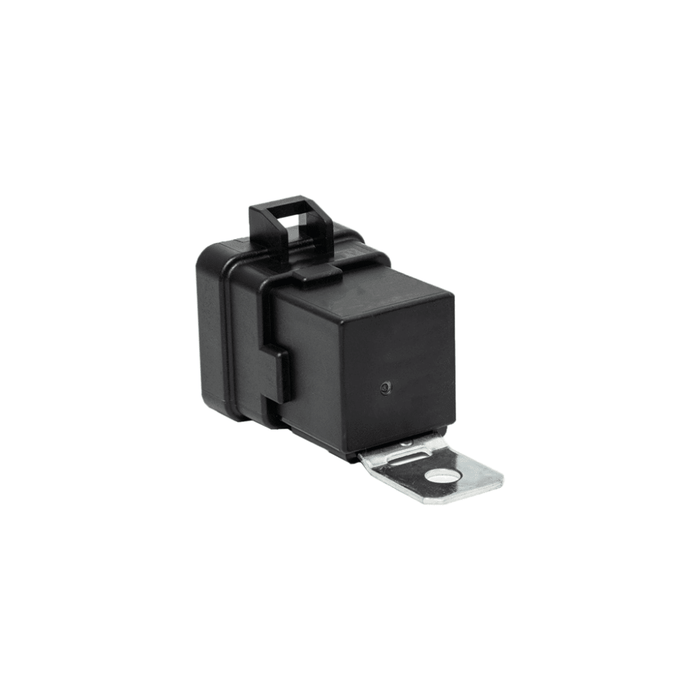

Sealed Relay 40A
por FuelTech
SKU 3020001919
Precio original
$29.00
-
Precio original
$29.00
Precio original
$29.00
$29.00
-
$29.00
Precio actual
$29.00
Racing Use Only, Not Legal for Road Use
High quality sealed relay which is typically used for ECU, injectors, and coils when building your own harness.
One relay required per item being wired.

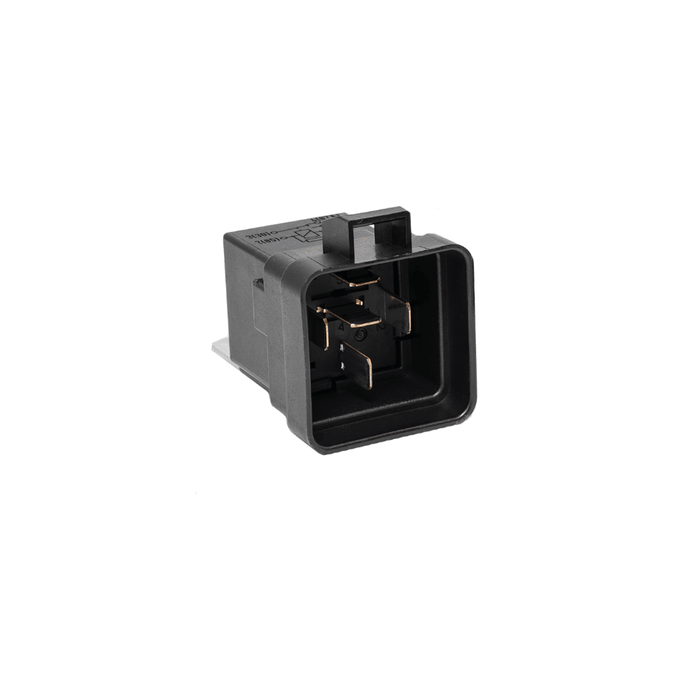

Electrical Connections:
85 - Trigger - FT auxiliary output (activated when switched to ground)
86 - Switched 12V
30 - Battery 12V - Use fuse
87 - Output for load - Normally open contact - 40A
87A - Normally closed contact
