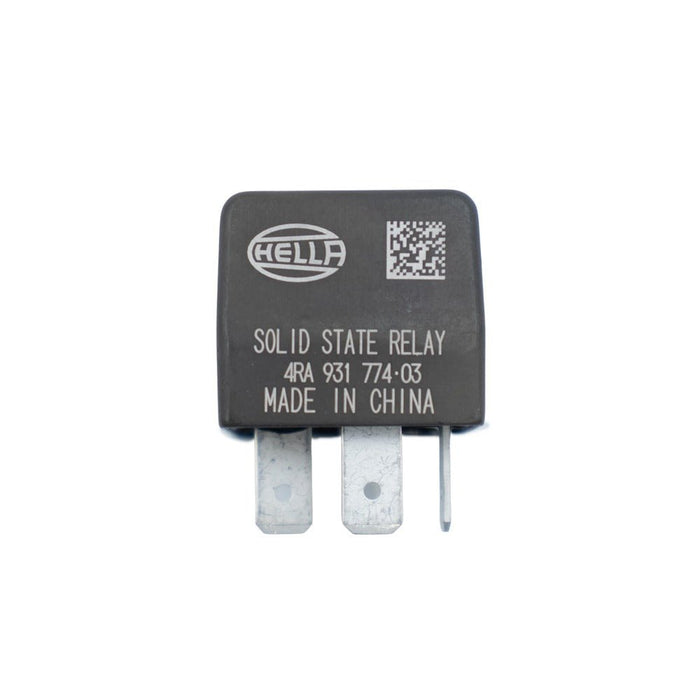

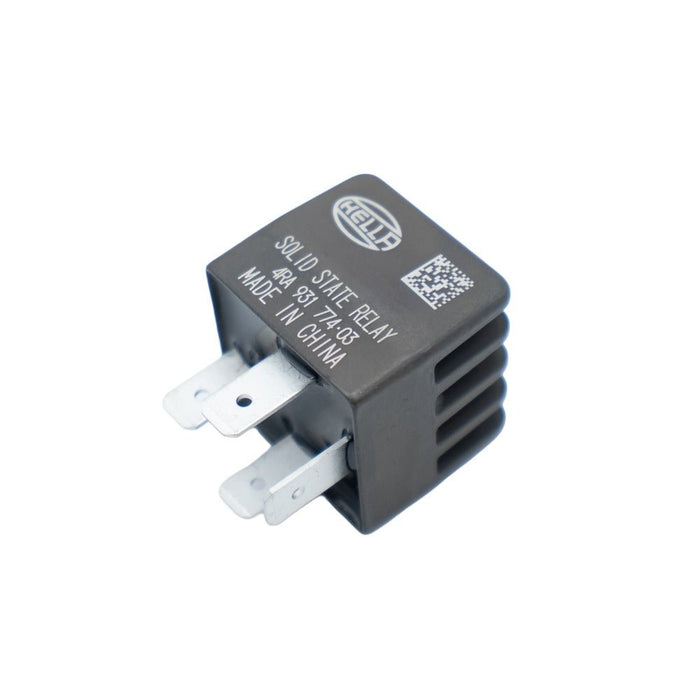

Staging / Brake Control Solid State Relay

• Downloads

•  Staging / Brake Control Relay Diagram

Features

This relay can be used for the following:

• FT600 / FT550 / FT500 / FT500LITE / FT450 built-in Staging Control
• FT600 / FT550 / FT500 / FT500LITE / FT450 built-in Brake Control

Fast switching speed which is perfect for PWM control and for use as a normal relay. No mechanical parts inside. Silent operation.

• 12V Solid State Relay
• Max Current: 20A
• PWM frequency: 0-1000Hz

Dimensions (L x W x H): 27mm x 27mm x 26mm (1.07in x 1.07in x 1.02in)
Weight: 30g

Electrical Connections:

• 30 - Switched 12V - Use fuse
• 85 - Not connected
• 86 - Trigger - FT auxiliary output (activated when switched to ground)
• 87 - Output for load - Normally Open contact - 20A:
