1" x 12" Rear Shock Travel Sensor, 0-5V Linear PN: STS231200
by Low Doller
SKU STS231200
Original price
$165.00
-
Original price
$165.00
Original price
$165.00
$165.00
-
$165.00
Current price
$165.00
Racing Use Only, Not Legal for Road Use

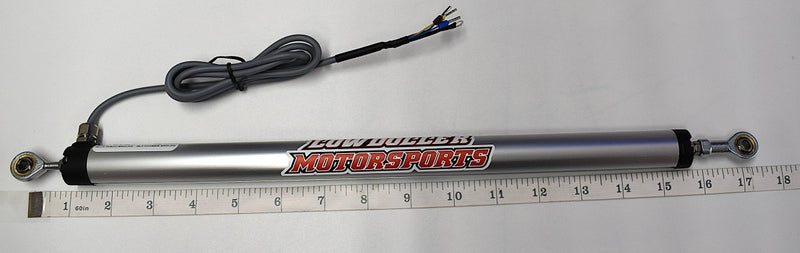

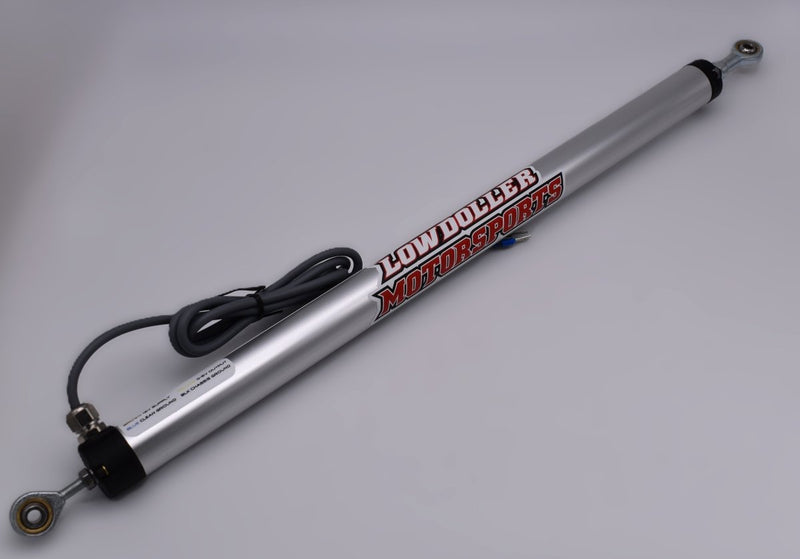

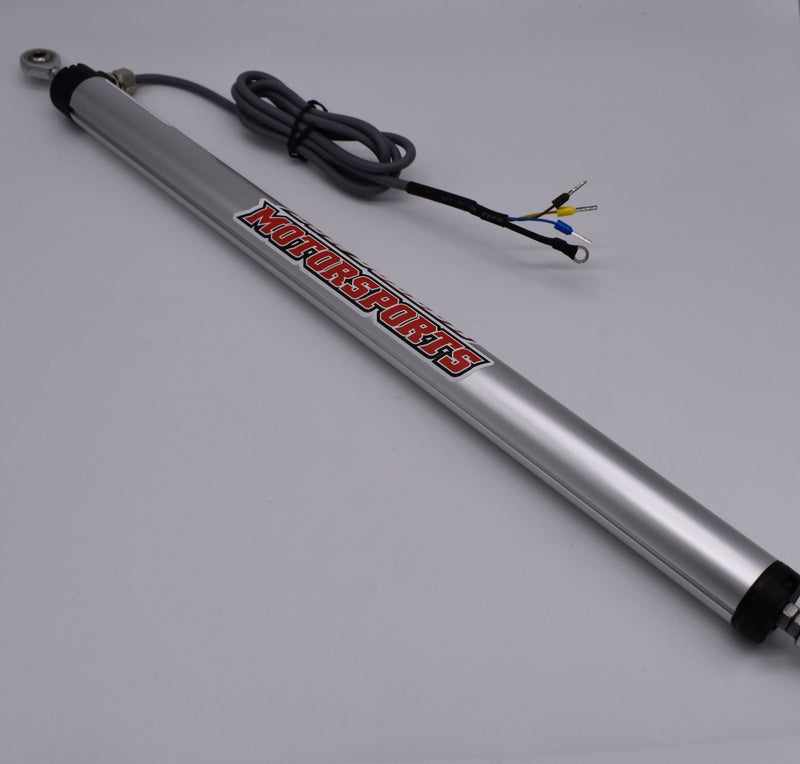

Lowdoller Motorsports 12" stroke linear travel sensor with a 1" body. The 1" body gives about three times the contact area of the 1/2" sensor for cleaner data. 12" of stroke is the longest Lowdoller offers, for Pro Mod, Radial vs the World and big power radial cars. It outputs a 0-5V analog signal, so it plugs into any Racepak, Holley EFI, FuelTech or Haltech analog input, and it works on anything from a stock suspension to a Pro Mod.
- Body diameter: 1"
- Stroke: 12"
- Overall length: 17" fully compressed, 29" fully extended (eye to eye)
- Output: 0-5V analog
- Compatible with all major data loggers and ECUs (Racepak, Holley EFI, FuelTech, Haltech)
- Sold individually
- Pre-wired extension cable, mounts and replacement heim joints sold separately
Lowdoller part number STS231200.
