1" x 2" Shock Travel Sensor, 0-5V Linear PN: STS23200
by Low Doller
SKU STS23200
Original price
$92.50
-
Original price
$92.50
Original price
$92.50
$92.50
-
$92.50
Current price
$92.50
Racing Use Only, Not Legal for Road Use

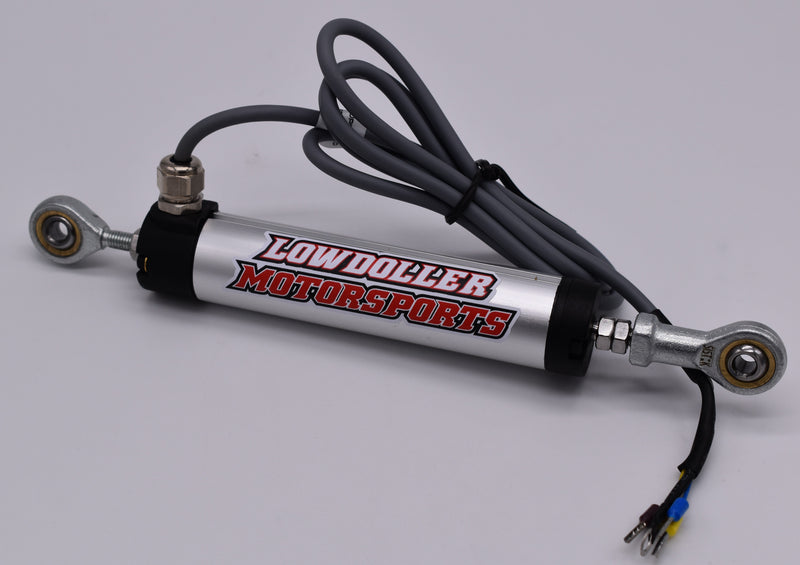

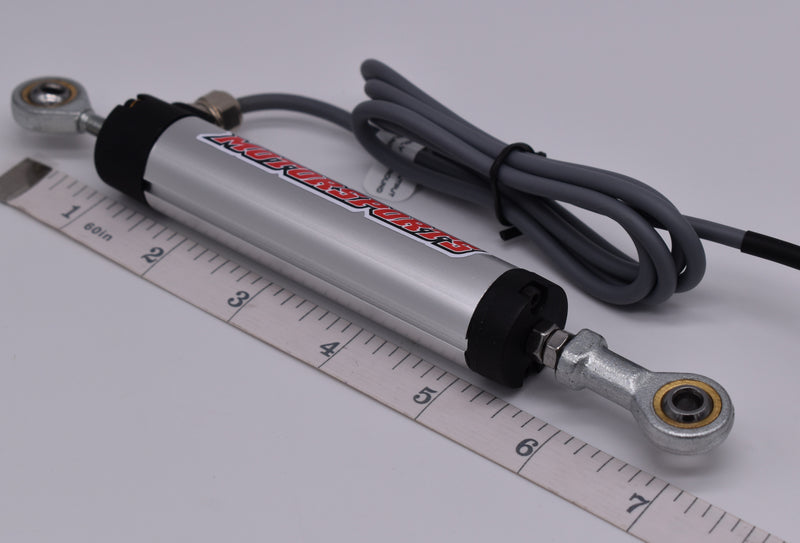

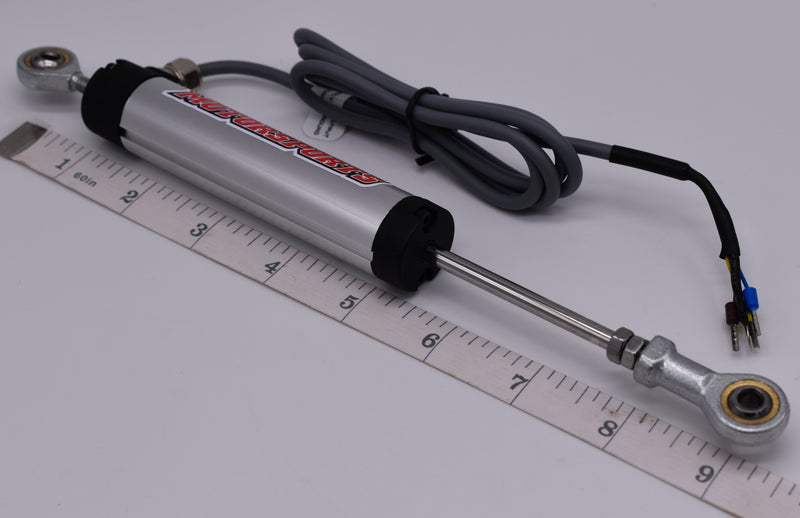

Lowdoller Motorsports 2" stroke linear travel sensor with a 1" body. The 1" body gives about three times the contact area of the 1/2" sensor for cleaner data. This short one also works as a shift position sensor (reverse detect for the transbrake output) and as a carbureted throttle position sensor for progressive nitrous control. It outputs a 0-5V analog signal, so it plugs into any Racepak, Holley EFI, FuelTech or Haltech analog input, and it works on anything from a stock suspension to a Pro Mod.
- Body diameter: 1"
- Stroke: 2"
- Overall length: 7" fully compressed, 9" fully extended (eye to eye)
- Output: 0-5V analog
- Compatible with all major data loggers and ECUs (Racepak, Holley EFI, FuelTech, Haltech)
- Sold individually
- Pre-wired extension cable, mounts and replacement heim joints sold separately
Lowdoller part number STS23200.
