Pro Series Weather Sensor, Onboard Temp, Baro, Density Altitude and Water Grains PN: 100303

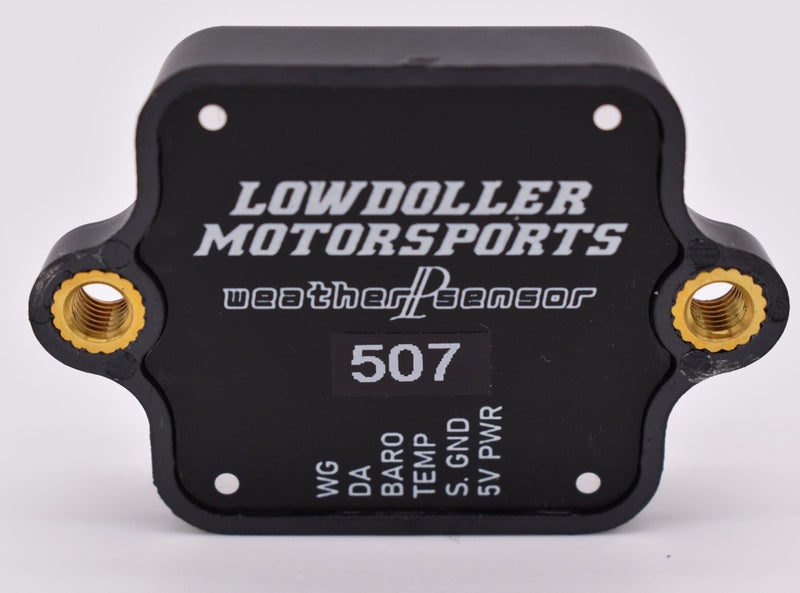

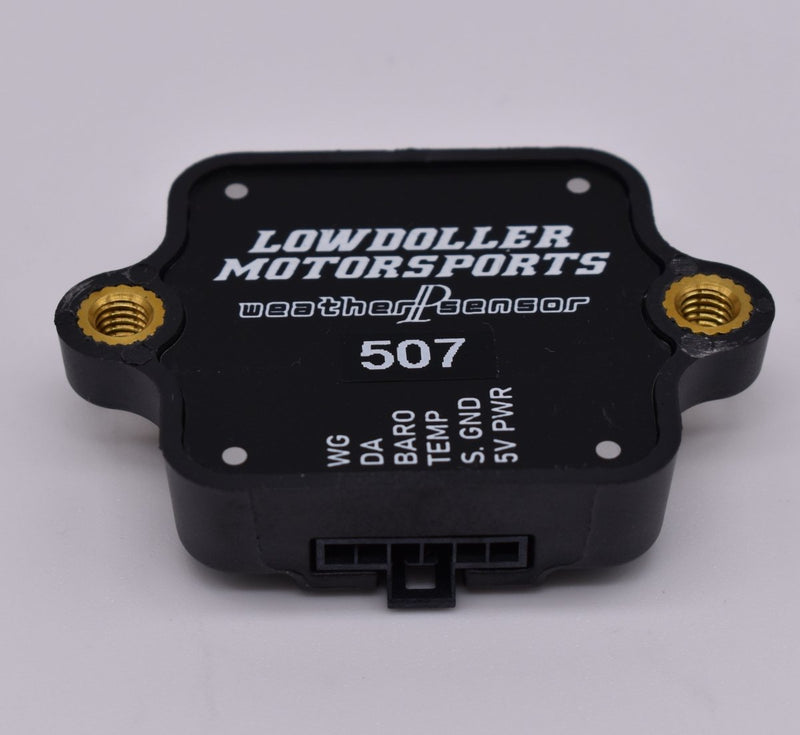

Plimpton Innovations Pro Series weather sensor sold through Lowdoller Motorsports. An onboard weather station for the race car: no cell signal needed, it reads the air right at the car and hands the ECU or logger four 0-5V channels it can log, show on the dash or use for closed loop corrections. The onboard CPU combines the individual sensors and compensates the readings before they go out.

• Supply: 5V sensor supply
• Outputs: four 0-5V analog channels
• Temperature: -20 to 120°F
• Barometric pressure: 16 to 32 inHg
• Density altitude: -3,000 to 12,000 ft
• Water grains: 0 to 150 GPP
• Outputs can be reprogrammed by the manufacturer (for example relative humidity in place of temperature, or different units) through the Custom Weather Programming add-on
• Lightweight aluminum base plate with mounting hardware
• MIL-spec connector with mating connector and terminals included
• Designed and built in the USA
• Roll bar mounts for 1.5" and 1 5/8" tube sold separately

Lowdoller part number 100303.
