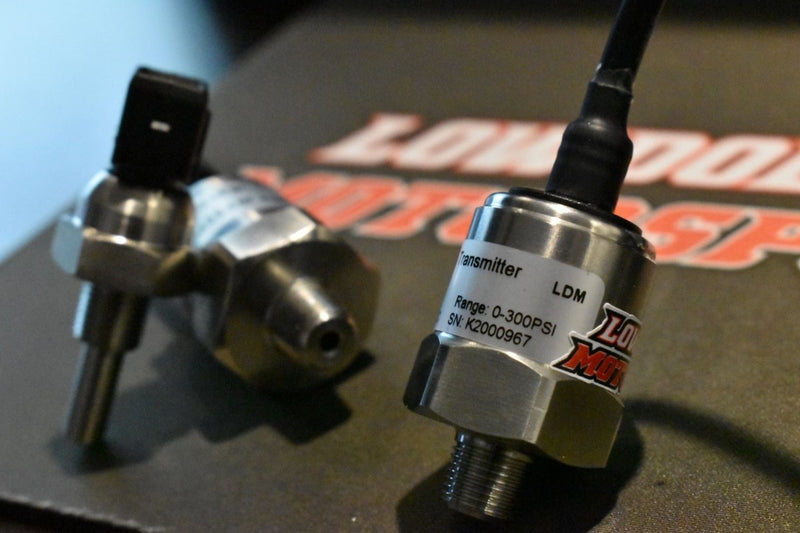

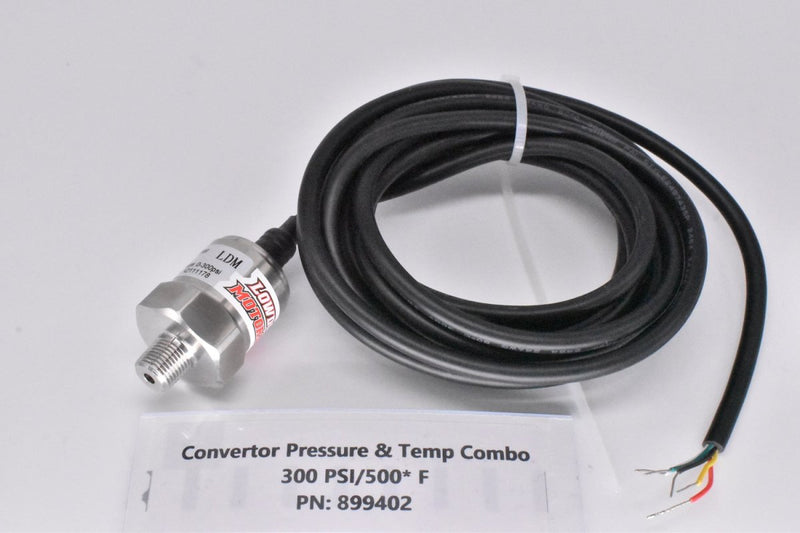

Converter Pressure & Temperature Combo Sensor 300 PSI / 500°F PN: 899402

Lowdoller Motorsports pressure and temperature combo sensor sized for the transmission: 0-300 PSI and 0-500°F from one 1/8" NPT port. Log converter charge pressure and fluid temperature on a single sensor instead of two fittings and two harness runs.

• Pressure: 0-300 PSI, 0.5V to 4.5V output
• Temperature: 0-500°F, resistive (ohms) output, PT100 type (100 ohm at 32°F)
• Input 5V
• Accuracy 0.5% of full scale
• 1/8" NPT thread

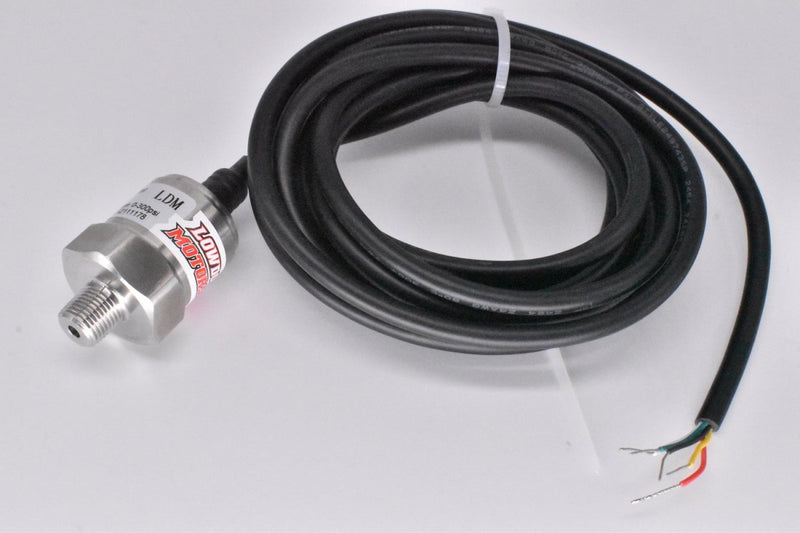

• 8.5 ft flying lead, enough to add a connector where it suits the install
• Ultra compact ASIC chip design, diffused silicon oil filled
• Shock, vibration and corrosion resistant
• Works with Holley, FuelTech, Haltech and other EFI systems (FuelTech voltage scaling sheet available from Lowdoller)

Wiring

• Red: 5V supply
• Black: sensor ground
• Yellow: pressure signal
• White: sensor ground
• Green: temperature signal

Typical uses: converter pressure and temperature, transmission line pressure and temperature.

Lowdoller part number 899402.
