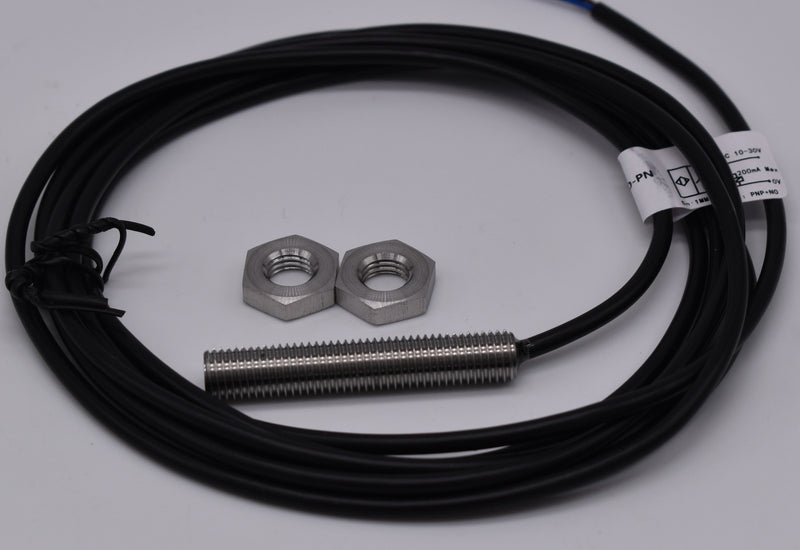

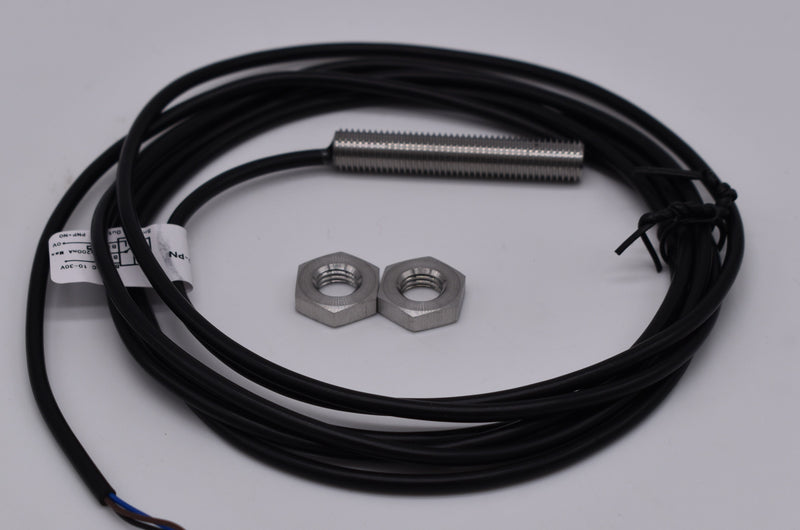

Driveshaft Speed Sensor, Hall Effect PNP (Positive Output), 5/16"-24 Flush Mount PN: 1520006

Lowdoller Motorsports hall effect speed sensor, PNP version. Instead of pulling the signal to ground it outputs a positive voltage pulse, which is what some data loggers and ECU inputs expect. Same 5/16"-24 stainless flush mount body as the standard sensor, so it fits the Strange Ultra Case.

• Hall effect, PNP: outputs positive voltage on each tooth
• Triggered by ferrous metal (not magnets)

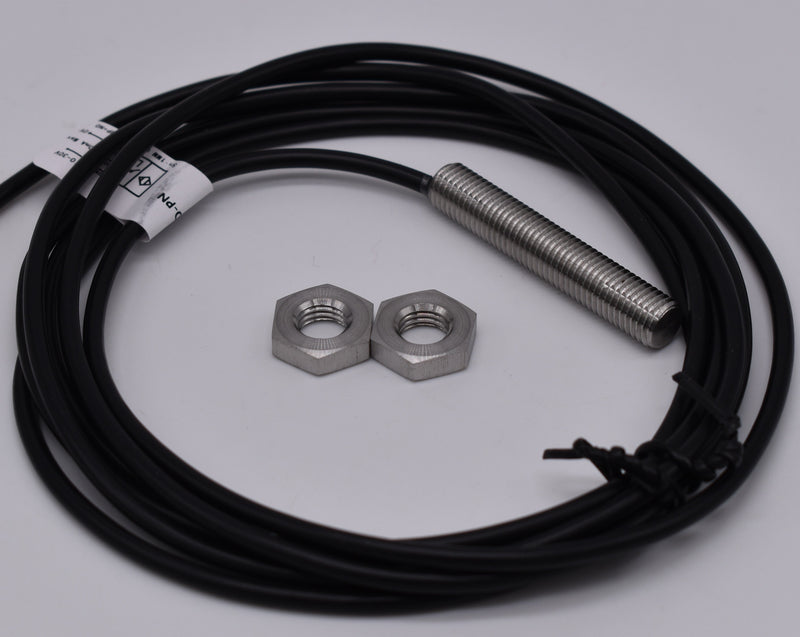

• 5/16"-24 stainless steel body, flush mount
• Air gap: 0.1 mm to 1 mm (0.004" to 0.040")
• Supply: 10 to 30 VDC, short circuit and reverse polarity protected
• Output: normally open
• Max switching frequency: 8,000 Hz
• Operating temperature: -13°F to 176°F
• IP67 waterproof
• Built-in LED for setup
• Works with Lowdoller 16 and 32 tooth driveshaft reluctor rings

Wiring

• Brown: power, 10 to 30 VDC
• Blue: clean ground
• Black: signal (positive voltage out)

Lowdoller part number 1520006 (model LDM-HALL-5/16-NO-PN).
