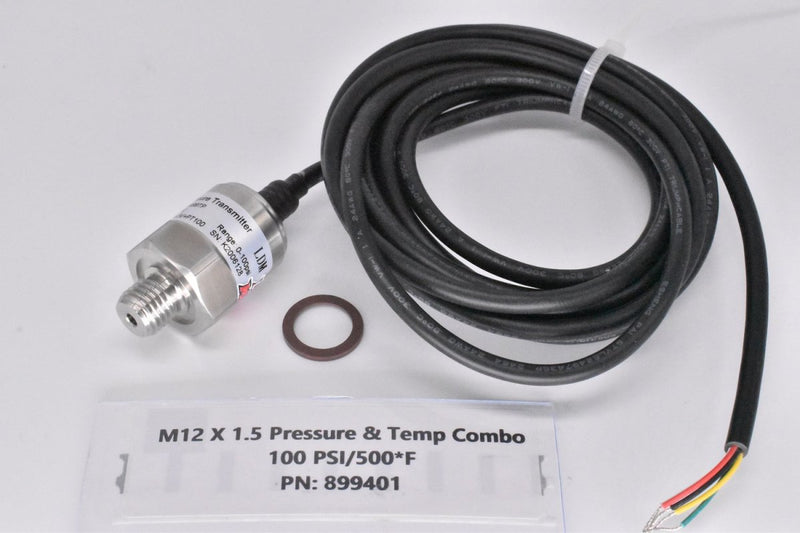

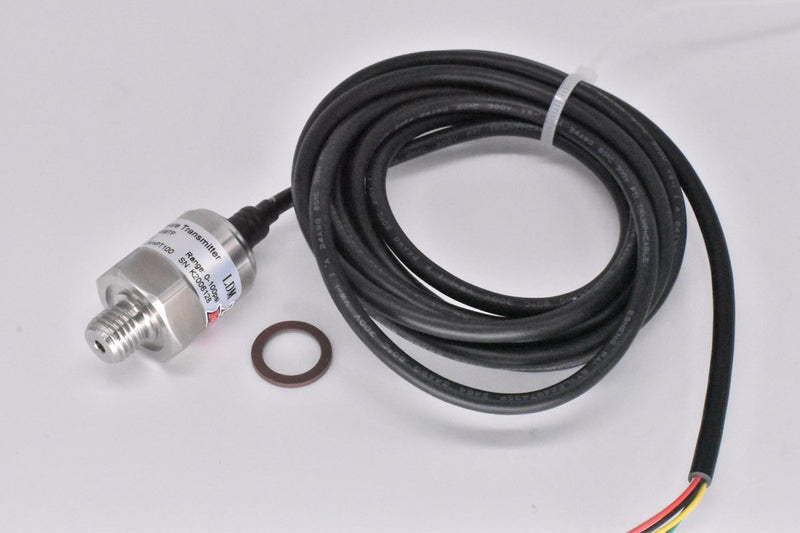

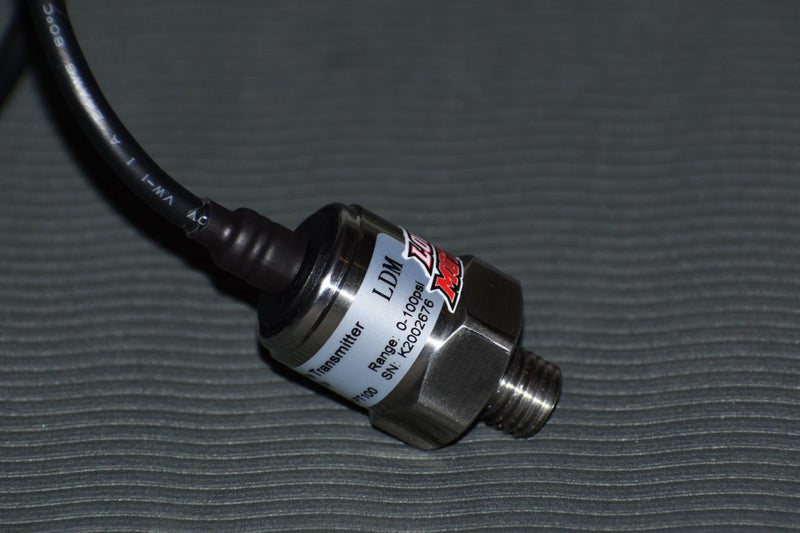

M12 x 1.5 Coolant Pressure & Temperature Combo Sensor 100 PSI / 500°F PN: 899401

by Low Doller
SKU 899401
$134.00 - $134.00
$134.00
$134.00 - $134.00
$134.00

Racing Use Only, Not Legal for Road Use

Lowdoller Motorsports pressure and temperature combo sensor: 0-100 PSI and 0-500°F in one sensor, one port. Metric M12 x 1.5 thread for coolant applications.

  • Pressure: 0-100 PSI, 0.5V to 4.5V output
  • Temperature: 0-500°F, resistive (ohms) output
  • Input 5V
  • Accuracy 0.5%

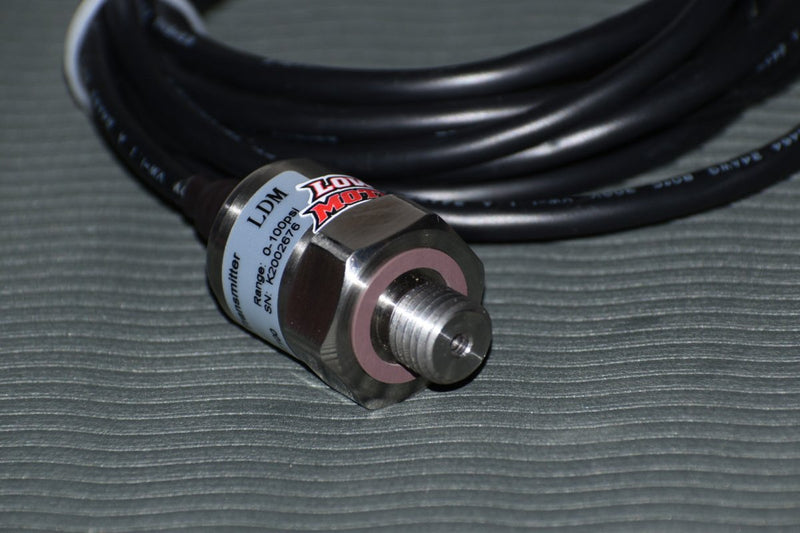

  • M12 x 1.5 thread with sealing ring
  • 8.5 ft flying lead
  • Ultra compact ASIC chip design, diffused silicon oil filled
  • Shock, vibration and corrosion resistant
  • Works with Holley, FuelTech, Haltech and other EFI systems

Wiring

  • Red: 5V supply
  • Black: sensor ground
  • Yellow: pressure signal
  • White: sensor ground
  • Green: temperature signal

Lowdoller part number 899401 (model LDM899TP100).
