4-Link Suspsension (PRINT FILE)

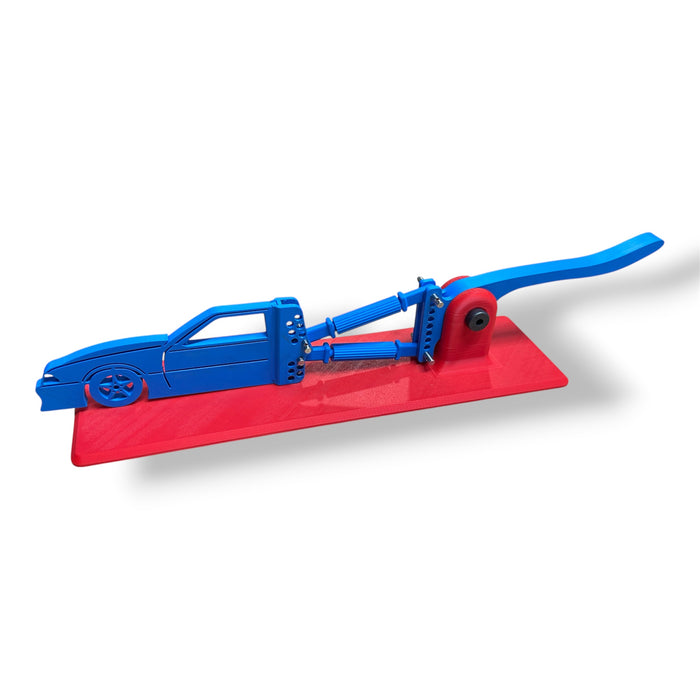

Perfect for anyone wanting a better visual understanding of rear suspension geometry. This downloadable 3D print file is a simplified model designed to help explain how changes in control arm angle and length affect suspension movement, separation and squat.

Built as an educational tool, this model makes it easier to visualize geometry changes in a hands on way. The double adjustable control arm design allows quick length changes without disassembly, making it easy to demonstrate and compare different setups.

This is a digital product only. No physical item will be shipped. Once purchased, you can download and print it at home or through your preferred 3D printing service.

Needed items to purchase separately on McMaster:

• 4x 5/32 pins PN 98404A101
• 1x shoulder bolt PN 92981A204
• 1x m6x1 nylock nut PN 94645A205

Personal Use Only License

Your purchase includes a non transferable, non commercial license that allows you to download and 3D print this model strictly for your own personal use.

The following actions are not permitted:
• Sharing, reposting, or distributing the digital file in any form
• Uploading the file to any website, platform, or STL repository
• Selling physical prints made from this file
• Altering the file with the intent to sell or redistribute it

All designs remain the exclusive intellectual property of Billet Pro Shop.
