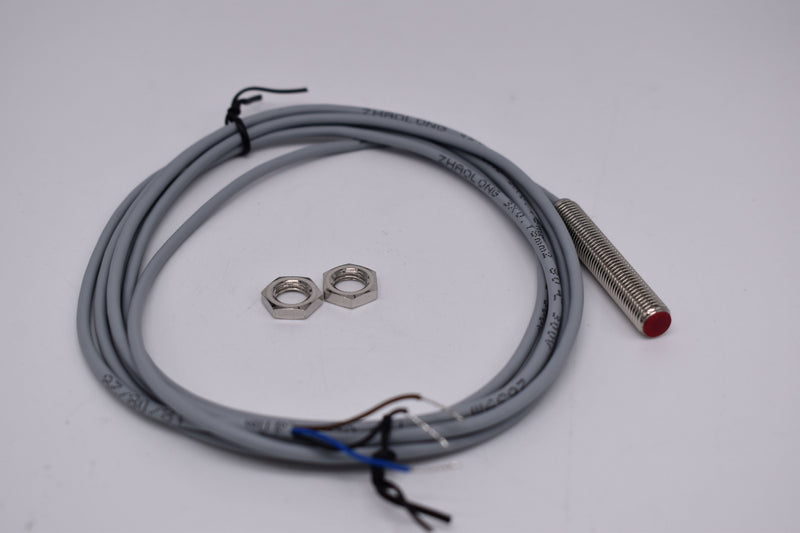

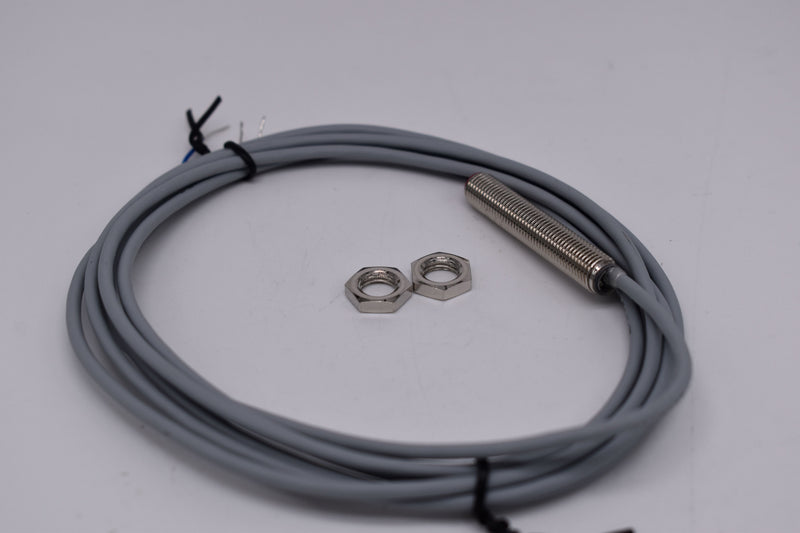

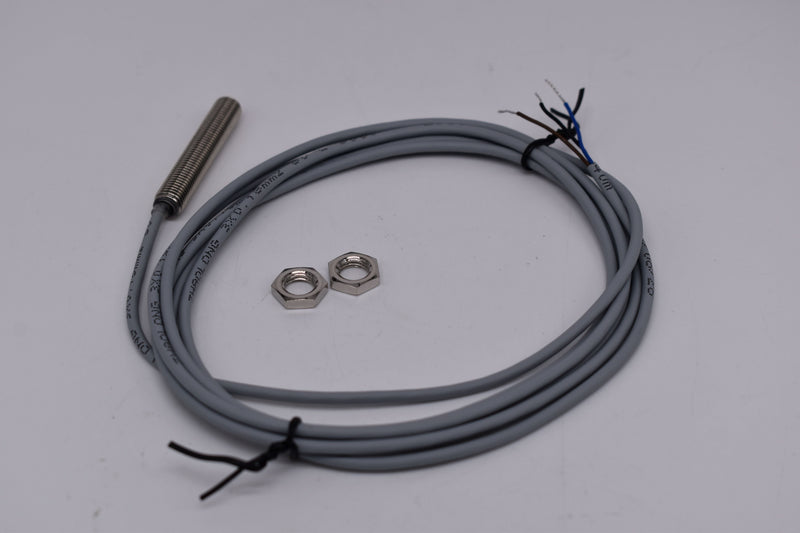

Magnet Triggered Hall Effect Speed Sensor, M8 x 1.0 Flush Mount PN: 1520008

Lowdoller Motorsports magnet triggered hall effect speed sensor in an M8 x 1.0 nickel plated flush mount body. This one reads magnets, not steel teeth, so it suits magnet-equipped collars and wheels and allows a much wider air gap. It will not read a plain steel reluctor ring.

• Hall effect, triggered by magnets (not ferrous metal)
• M8 x 1.0 nickel plated body, flush mount
• Air gap: 0.1 mm to 10 mm
• Supply: 10 to 30 VDC, short circuit and reverse polarity protected
• Output: normally open, NPN (signal pulls to 0V)
• Max switching frequency: 1,000 Hz
• Operating temperature: -13°F to 176°F
• IP67 waterproof
• Built-in LED for setup

Wiring

• Brown: power, 10 to 30 VDC
• Blue: clean ground
• Black: signal (0V to the data logger or ECU)

Lowdoller part number 1520008 (model LDM-MAG-HALL-M8-NO-NP).
