Why Upgrade Your Secondary Guides with Billet Pro Shop?

Understanding the Role of Secondary Guides

Secondary guides are crucial components in your engine's timing system, ensuring precise alignment and operation of the timing chain. Properly functioning guides maintain optimal engine performance and prevent catastrophic failures.

Common Causes of OE Secondary Guide Failures

• Material Weakness: Many OE guides are made of plastic or lower-grade materials prone to wear, cracking, or deformation under stress.
• Thermal Stress: High engine temperatures can degrade the structural integrity of OE guides over time.
• Extended Use: Prolonged use without proper maintenance can lead to excessive wear and eventual failure.
• Performance Modifications: Increased power output from engine upgrades can put additional strain on the timing system, accelerating OE guide failure.
• Higher Spring Pressures: Aftermarket cams with higher spring pressures and more lift significantly increase the stress on OE guides.
• Locked Timing: Locking cams in an advanced position increases dynamic compression, making the engine harder to turn and adding tension to the chains.

If you are working through a lockout job, the VCT lockout guide covers the centerline numbers and which parts a Gen 3 or Gen 4 needs on top of the lockouts themselves.

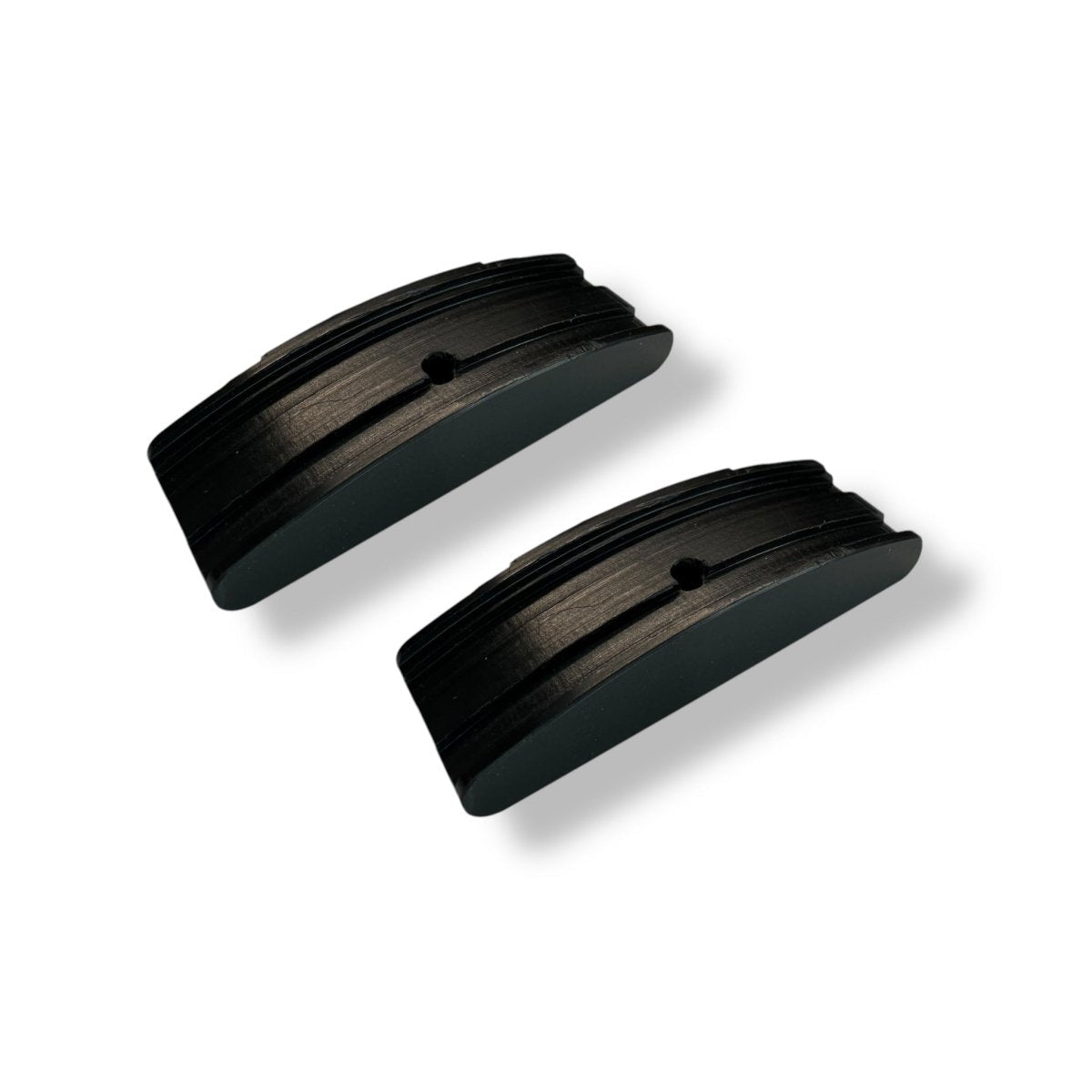

Why Upgrade to Billet Pro Shop Secondary Guides?

Billet Pro Shop secondary guides are the ultimate solution for engines with locked-out cams, increased valve spring pressure, and high-performance demands. Factory guides are prone to failure under these conditions, but our upgraded guides are engineered to endure.

Key features of Billet Pro Shop Secondary Guides:

• CNC-Machined Proprietary Plastic Resin: Specifically designed to withstand harsh conditions found in high-performance engines.
• Wear and Heat Resistant: Ensures durability in extreme environments.
• Low Friction Design: Lubricated through factory oiling holes to minimize wear and maximize reliability.
• Redesigned Geometry: Distributes load evenly to enhance longevity.
• Compatible with All Fuel Types: Suitable for ethanol, methanol, and traditional fuels.
• Tested Proven Performance: Successfully used in multiple 2000+HP cars, lasting all season where factory guides fail after just 10 runs.

Unlike other options, Billet Pro Shop guides won't wear the secondary chains while delivering unmatched longevity and reliability.

Guides are one part of the secondary drive. If the chains have been through a season behind locked cams and heavy springs, put heavy duty secondary chains in at the same time — thicker plates and a thicker pin than factory, and it is the same teardown either way. Two other things live in the same job: on 2011-2017 the factory tensioner pushes on the driver side head in the wrong direction, which the secondary tensioner flip bracket (EN043) corrects by applying pressure to the slack side of the chain, and the primary chain arms and guides see the same load the secondaries do. Factory cam caps are the other known limit under spring pressure — see billet cam caps.
