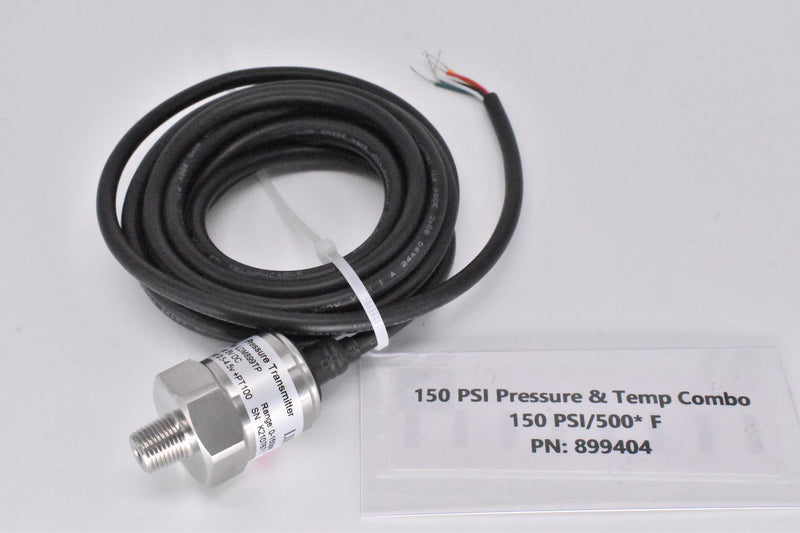

Pressure & Temperature Combo Sensor 150 PSI / 500°F PN: 899404
by Low Doller
SKU 899404
Original price
$92.50
-
Original price
$92.50
Original price
$92.50
$92.50
-
$92.50
Current price
$92.50
Racing Use Only, Not Legal for Road Use

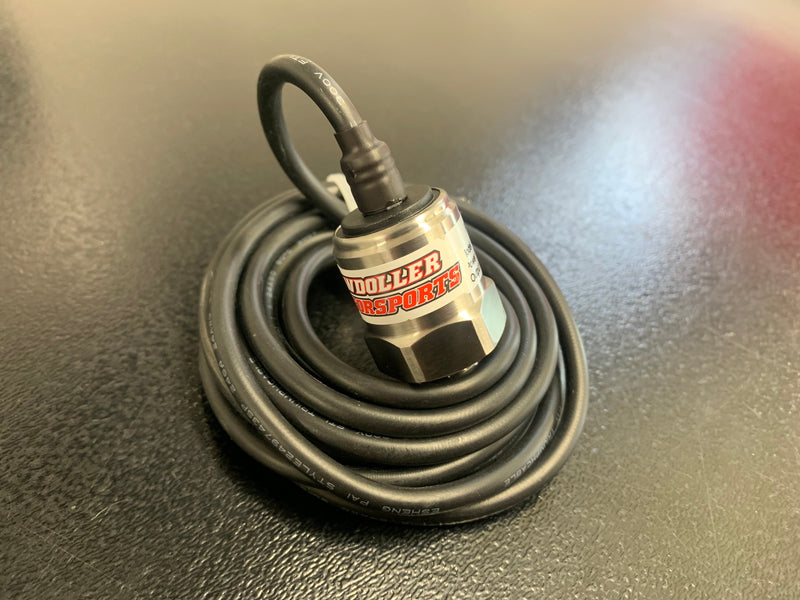

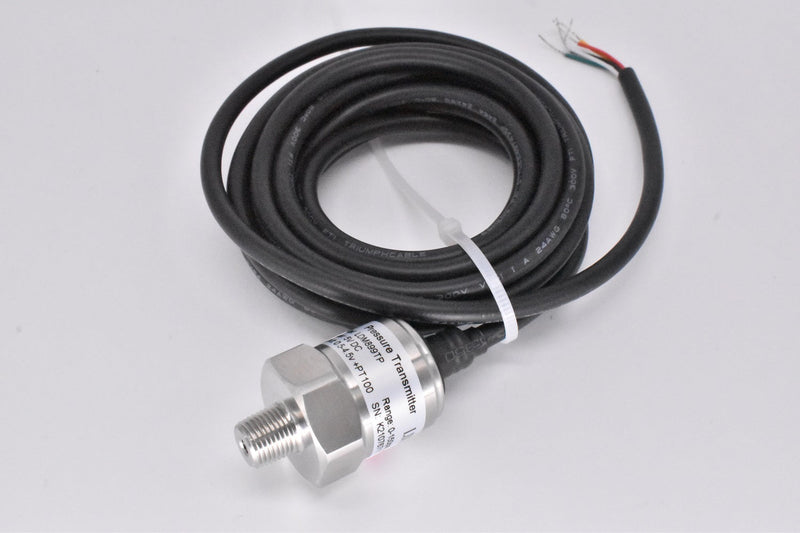

Lowdoller Motorsports pressure and temperature combo sensor: 0-150 PSI and 0-500°F from one 1/8" NPT port. Same body size as the standard 100 PSI sensor. The 150 PSI range gives headroom for boosted fuel pressure or higher oil pressure while keeping the temperature channel.
- Pressure: 0-150 PSI, 0.5V to 4.5V output
- Temperature: 0-500°F, resistive (ohms) output, PT100 type (100 ohm at 32°F)
- Input 5V
- Accuracy 0.5% of full scale
- 1/8" NPT thread
- 8.5 ft flying lead, enough to add a Deutsch DTM connector where it suits the install
- Ultra compact ASIC chip design, diffused silicon oil filled
- Shock, vibration and corrosion resistant
- Works with Holley, FuelTech, Haltech and other EFI systems (FuelTech voltage scaling sheet available from Lowdoller)
Wiring
- Red: 5V supply
- Black: sensor ground
- Yellow: pressure signal
- White: sensor ground
- Green: temperature signal
Typical uses: fuel pressure and temperature, oil pressure and temperature.
Lowdoller part number 899404.
