Racing Use Only, Not Legal for Road Use

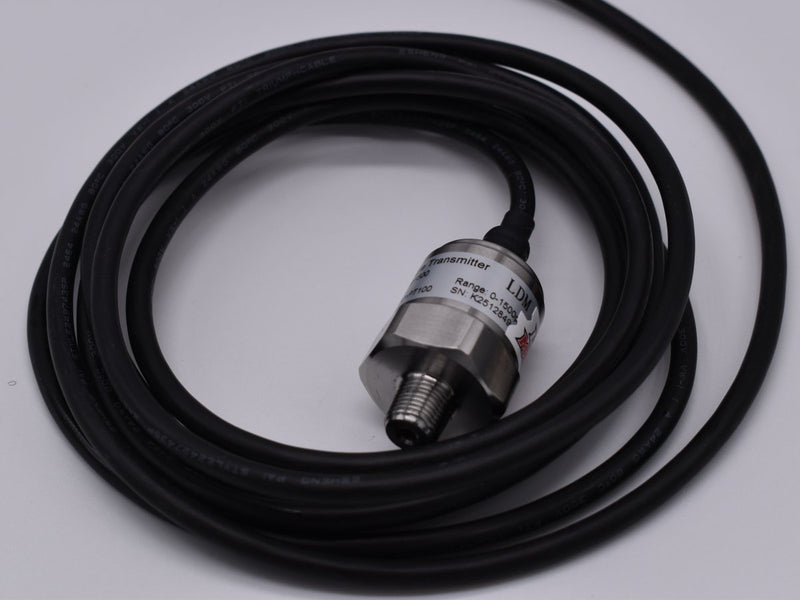

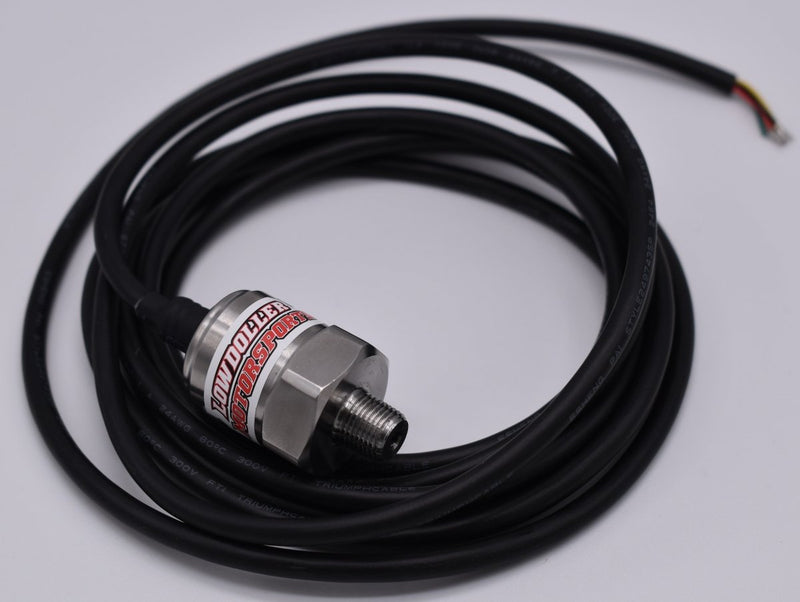

Lowdoller Motorsports pressure and temperature combo sensor for the brake system: 0-1500 PSI and 0-500°F from one 1/8" NPT port. Log line pressure and fluid temperature together to see brake application and heat on the same channel pair.
- Pressure: 0-1500 PSI, 0.5V to 4.5V output
- Temperature: 0-500°F, resistive (ohms) output, PT100 type (100 ohm at 32°F)
- Input 5V
- Accuracy 0.5% of full scale
- 1/8" NPT thread

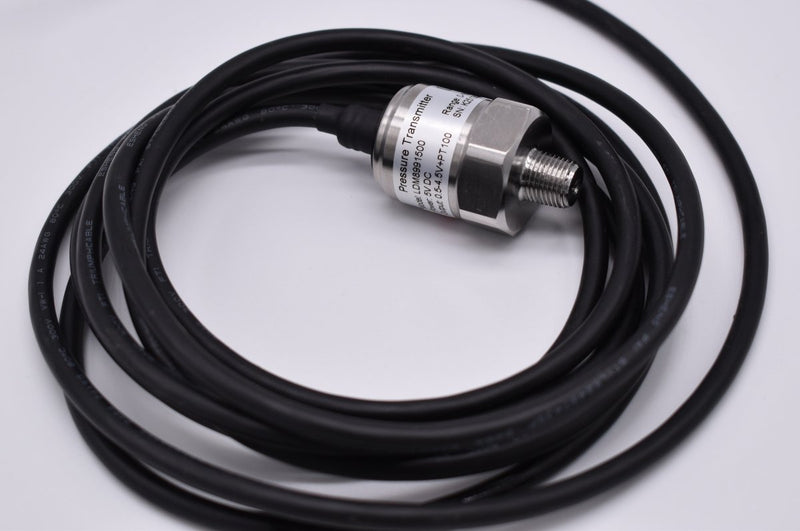

- 8.5 ft flying lead, enough to add a connector where it suits the install
- Ultra compact ASIC chip design, diffused silicon oil filled
- Shock, vibration and corrosion resistant
- Works with Holley, FuelTech, Haltech and other EFI systems (FuelTech voltage scaling sheet available from Lowdoller)
Wiring
- Red: 5V supply
- Black: sensor ground
- Yellow: pressure signal
- White: sensor ground
- Green: temperature signal
Typical uses: brake line pressure and brake fluid temperature.
Lowdoller part number 899405.
