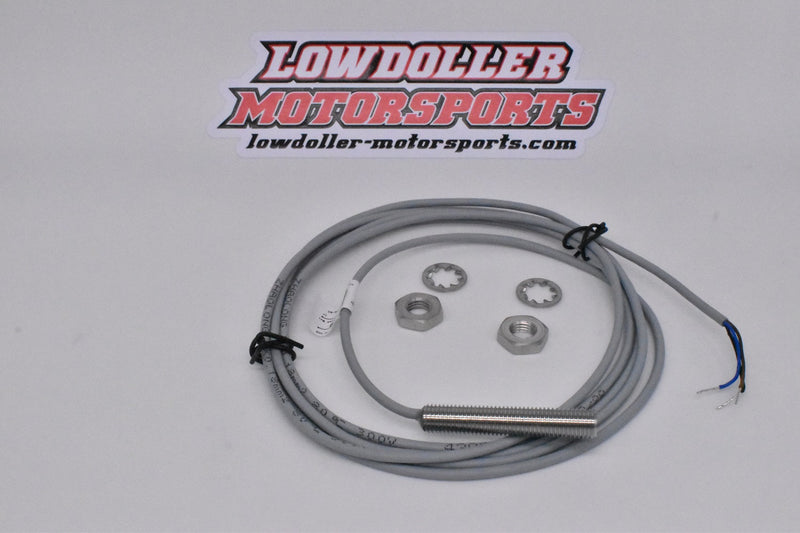

Driveshaft Speed Sensor, Hall Effect, 5/16"-24 Flush Mount (Strange Ultra Case) PN: 1520156

Lowdoller Motorsports hall effect speed sensor in a 5/16"-24 stainless flush mount body, the size used on the Strange Ultra Case with Lowdoller's 2.125" collar. Triggered by ferrous metal, so it reads steel reluctor ring teeth directly, with a built-in LED for setting the air gap.

• Hall effect, triggered by ferrous metal (not magnets)
• 5/16"-24 stainless steel body, flush mount
• Air gap: 0.1 mm to 1 mm (0.004" to 0.040")
• Supply: 10 to 30 VDC, short circuit and reverse polarity protected
• Output: normally open, NPN (signal pulls to 0V)
• Max switching frequency: 8,000 Hz
• Operating temperature: -13°F to 176°F
• IP67 waterproof
• Built-in LED for setup
• Works with Lowdoller 16 and 32 tooth driveshaft reluctor rings

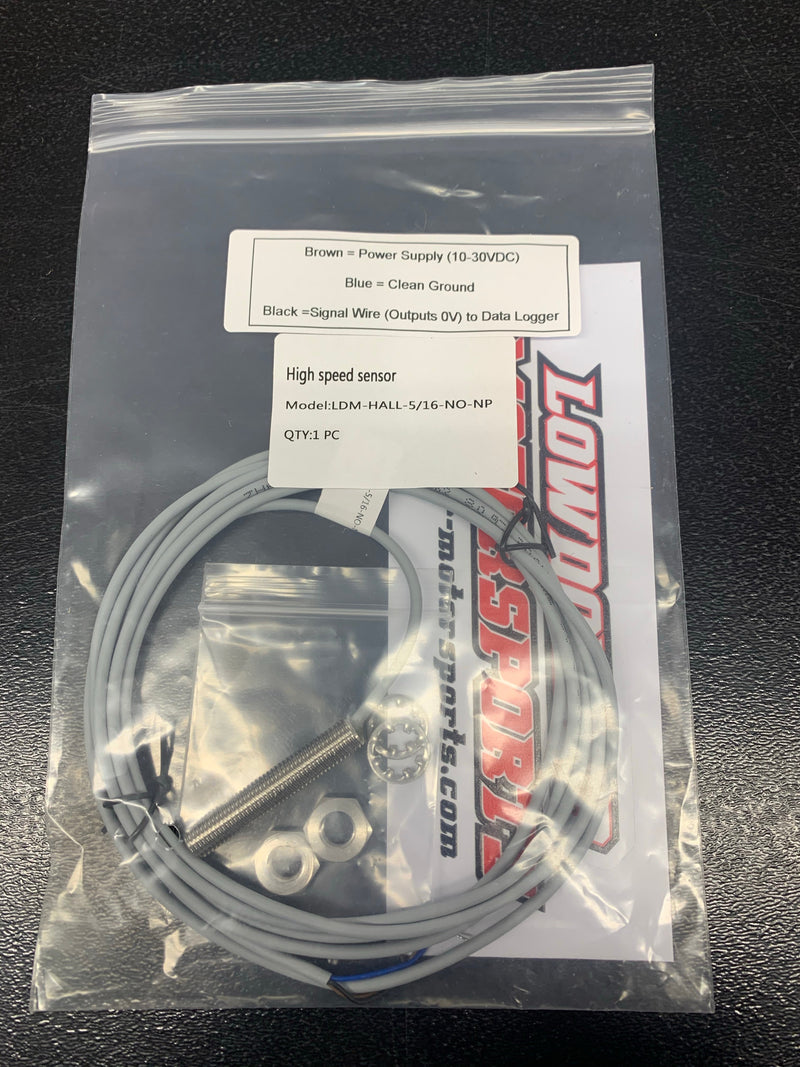

Wiring

• Brown: power, 10 to 30 VDC
• Blue: clean ground
• Black: signal (0V to the data logger or ECU)

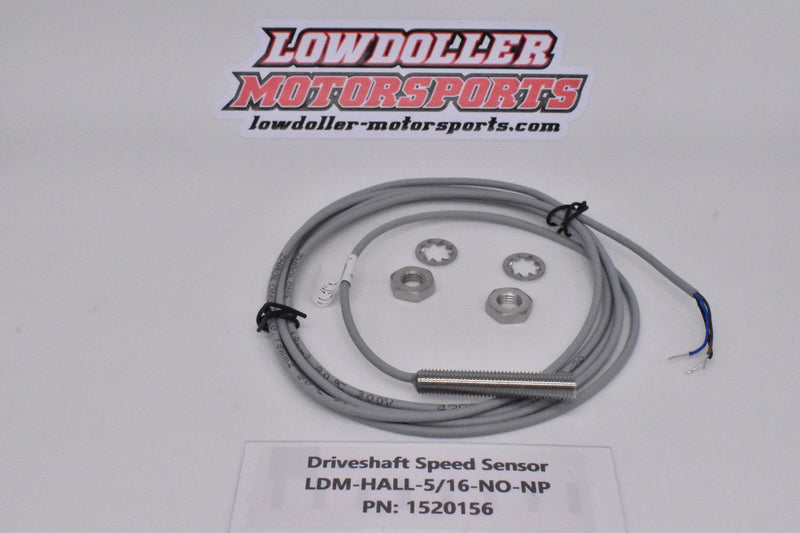

Lowdoller part number 1520156 (model LDM-HALL-5/16-NO-NP).
