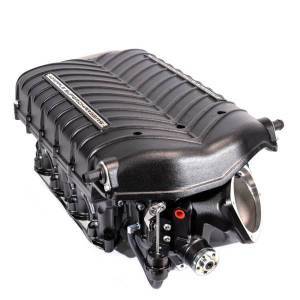

2015-2017 Ford F-150 5.0L Whipple Gen 6 3.0L Supercharger Stage 1 Kit

This Whipple Gen 6 W185AX 3.0L twin-screw supercharger system is purpose-built for the 2015-2017 Ford F-150 5.0L Coyote, delivering up to 715 horsepower and 620 lb-ft of torque at the flywheel on 93-octane fuel. Every system is engineered, machined, and assembled in-house at Whipple's Fresno, California headquarters as a complete, matched package — not an assortment of parts pieced together.

Built for real-world truck use on 91-octane or better, this Stage 1 system centers on the Gen 6 W185AX 3.0L front-feed twin-screw supercharger — about 30% more displacement than smaller roots-type 2.3L systems. An oversized Crusher inlet and Whipple's patented dual-core, dual-pass intercooler — the largest bar-plate design in the segment — keep charge temperatures down along with an oversized heat exchanger and high-flow IC pump. A 3-bar TMAP sensor and 55 lb/hr injectors support the added airflow, and the self-contained oil system keeps maintenance simple.

An HP Tuners Whipple RTD flash tool is included for calibration loading, diagnostics, code reading, and datalogging.

50-state legal — CARB Executive Order D-231-71.

• Up to 715 HP / 620 lb-ft of torque (93 octane)*
• Stage 1 — real-world truck power with a flat, drivable torque curve
• Whipple Gen 6 W185AX 3.0L front-feed twin-screw supercharger, Fresno, CA built
• Patented dual-core, dual-pass intercooler
• 6-rib belt with spring-loaded tensioner, 3-minute pulley changes
• Spark plugs included
• Lightweight pocketed aluminum supercharger pulley

*Power figures reflect ideal conditions on the specified octane; actual results vary with fuel quality, elevation, and supporting modifications.

Additional factory upgrades available (priced per Whipple's current option list — contact us to add): calibration-only credit (no flash tool).
