Coiled Cable or Slip Ring: What Your Drag Car Steering Wheel Actually Needs

Somewhere between the burnout box and the beams, a coiled cable is going to remind you it exists. Maybe the transbrake button stops firing clean. Maybe the flashers cut out mid pass and nobody can figure out why until the wiring gets pulled apart on the bench. Nine times out of ten, the culprit is the coiled cord running from the column to the wheel. A pass itself barely turns the wheel. It's cranking to full lock to peel off into the return road after every run that actually pulls and strains that cord, over and over, until something finally gives.

That's not a knock on coiled cables. Plenty of cars run them for years without a single problem. But once you understand what's actually happening inside that cord every time the wheel turns, it gets a lot easier to tell whether your car is a candidate for something different.

What's Actually Wired Through the Wheel

Before comparing hardware, it's worth listing what typically runs through a drag car's steering wheel. Transbrake button. Line lock. A bump box or delay box trigger. Flashers. On plenty of builds, a headset mic button gets added too, and sometimes a nitrous arm switch or shift light.

Every one of those is a separate circuit that has to survive full lock to full lock, pass after pass, without a false trigger or a dropout. A transbrake that releases a beat early because of a flaky wire isn't a minor annoyance. It's a red light.

Where a Coiled Cable Actually Fails

A coiled cable is a spring made of wire. Every time the wheel turns, that spring stretches and the individual conductors inside flex along with it. There's no fixed number of circuits where a coiled cable suddenly stops working, but every function added is another conductor going through the same repeated flex cycle in the same crowded cord, and reliability problems tend to show up long before you physically run out of room to add more wires.

The failure almost always shows up at the same spot: right where the cord terminates into a connector, which is exactly where cyclic flexing does the most damage over time. And it rarely fails clean. It fails intermittently, which is about the worst kind of electrical problem to chase, because it works on the bench, works in the pits, and then drops a signal at 8,000 RPM in the water box.

What a Slip Ring Changes

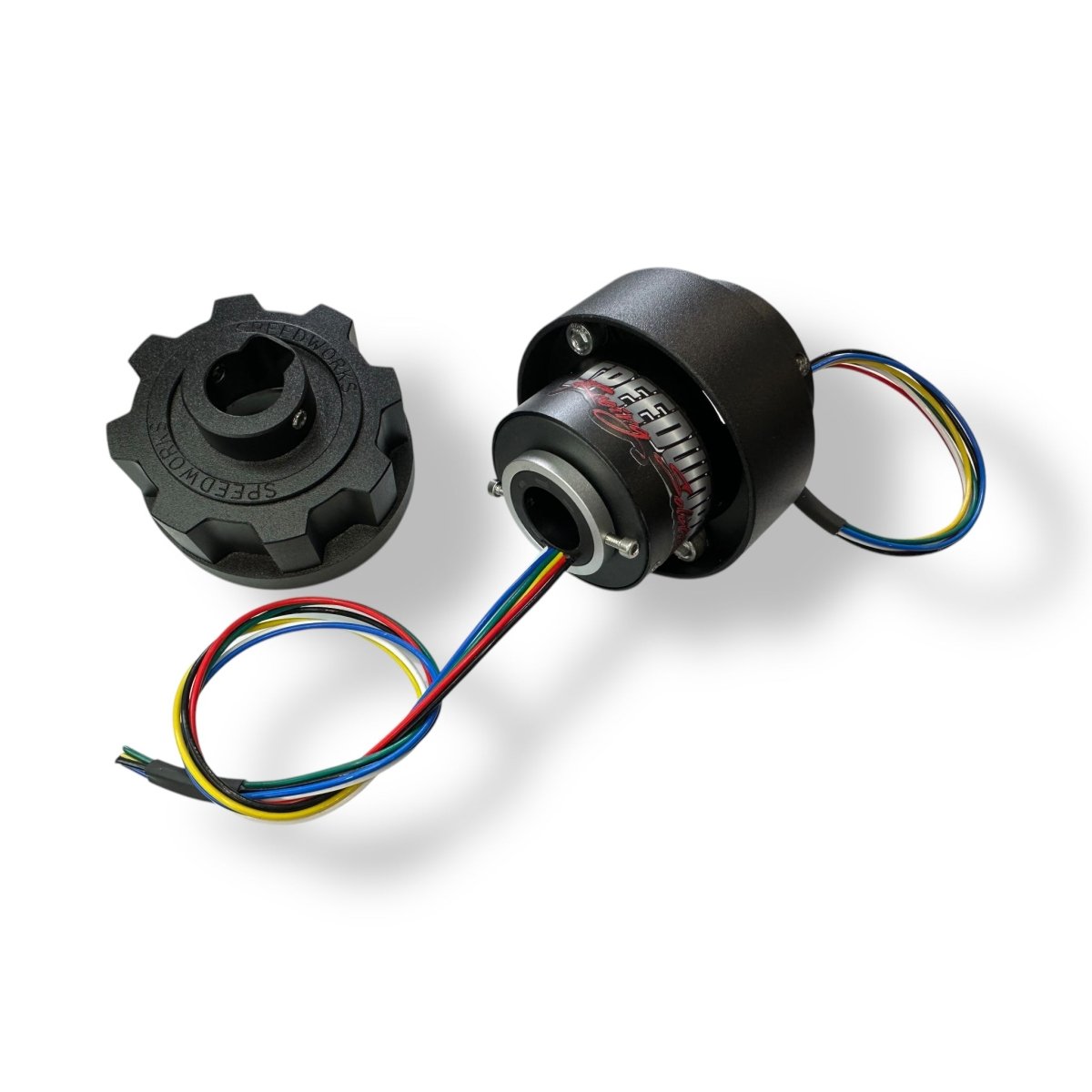

A slip ring replaces that flexing coil with a set of continuous rotating contacts, so the wheel can turn freely without any wire ever bending. Billet Pro Shop's D-Tang Steering Column Slip Ring runs six bridgeable channels at 10 amps each, enough to cover transbrake, line lock, bump, flashers, and headset communication with room left over, and it's built around SOURIAU 8STA connectors, the same connector family used in F1 and endurance racing harnesses.

Because nothing in the signal path is flexing, there's no fatigue point waiting to fail down the road. The wheel spins freely and completely, and one whole category of intermittent gremlin gets designed out of the car instead of chased down after the fact.

What the Install Actually Involves

This is a bolt-on kit, not a rewire of the car. The D-Tang is built around a CNC machined delrin base with an aluminum cable mount, and it's sized to match the column tube diameters most race cars actually run: 1.125, 1.25, or 1.5 inch. The install comes down to matching the slip ring to your column, running the wheel-side circuits into the included harness, and bolting it in place.

Do You Actually Need One

If you're running one or two functions through the wheel and haven't had a reliability problem, a coiled cable is still a completely reasonable way to do it. A slip ring earns its keep once a car is running several circuits through the wheel, once you're chasing an intermittent electrical problem you can't pin down, or any time a dropped signal at the wrong moment is a genuinely expensive mistake, like a transbrake or a delay box trigger.

The D-Tang kit is available for 1.125, 1.25, and 1.5 inch columns. Check fitment and order the D-Tang Steering Column Slip Ring here.
